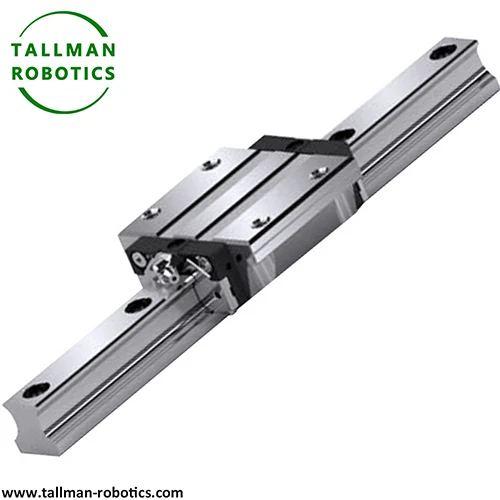

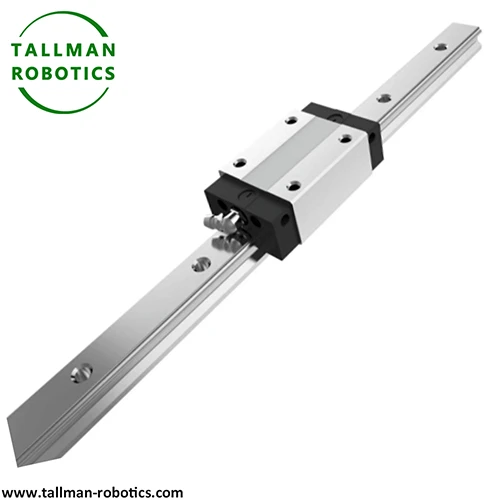

Saray Linear Guideways et saray eksakton mekanikal a kabiangan ya uusaren pian igiya iray mekanikal ya istruktura pian nadampot so atagey a -eksakton linear a galaw. Malaknab iran uusaren ed saray lawak a singa say CNC machine tools, automation equipment, robot, tan saray instrumenton panagsukat na eksakto. Iyalis to so karga manlapud saray onkukurang a parte ya anggad ag-onkukurang a base panamegley na sliding o rolling contact, legan ya seseguroen so inka-smooth tan inka-eksakto na galaw.
No mankikimey so Linear Guideways, say slide et onkukurang ed guide rail body, tan say rolling element et onkukurang ed baetan na track tan say slider tan onaagus lamet ed circulation device, ya aglabat onsuporta ed karga noagta mamapaabeba met na friction. Diad saman met a panaon, say precision machining et mamaseguro ya say straightness error na galaw et nakontrol ed micrometer level.
Saray Linear Guideways et high-precision linear motion systems ya malaknab ya uusaren ed industrial automation, semiconductor equipment, tan arum niran lawak pian nadampot so maabig tan eksakton galaw na saray bengatla diad diretson linya. Say manunan gagala to et say panguman ed tradisyonal ya sliding friction ya magmaliw ya rolling friction panamegley na low friction rolling o sliding mechanism, diad ontan et napaaligwas so motion efficiency, rigidity, tan positioning accuracy.
Saray Linear Guideways et walaan na apatiran parte:
1).Rail: Sakey ya andukey ya rektanggulo ya kabiangan ya akapeket ed base, ya walay eksakton track ed tapew to.
2).Block: Nikonekta ed saray onkukurang a parte tan walaan na saray rolling elements (bola o roller) ed loob.
3).Rolling Elements: Walad baetan na slider tan guide rail, tan manguusar ira na rolling friction imbes ya sliding friction pian nabawasan so resistensya.
4).Loop system: pansengegan na pangiliber na saray rolling elements ed loob na slider, ya makadampot na agnaparaan ya biahe.
Saray manunan kabiangan tan bentaha na Linear Guideways:
1).Atagey ya inkasusto: Diad panamegley na inkasusto na panaggiling, say inkasusto na posisyon tan inkasusto na pangulit et naseguro ya walad loob na 0.01mm.
2). Atagey ya inkapekder: Makatunongan ya cross-sectional ya desinyo tan pre tensioning ya istruktura, ya sarag ton sungdoan iray radial, axial, tan moment loads.
3).Abeban friction: Say rolling friction coefficient et manga 1/50 labat na sliding friction, ya mamapaabeba na enerhiya tan pakawalaan na petang.
4).Andukey so bilay: Saray rolling elements et parepareho so stress da, tan no ikompara ed lubrication system, sarag dan naabot so serbisyo na samplon libon oras.
Saray nanduruman klase na Linear Guideways (singa say ball guides, roller guides, tan cross roller guides) et matukoy parad saray senaryo ya walaan na nanduruman karga, inkasusto, tan kapeles ya kakaukolanen, tan sikara so manunan kabiangan na modernon teknolohiya na panaggawa tan automation.
Diad sayan pahina, ipaparungtal mi so serye na Linear Guideways, nanengneng yo so data sheet, litrato na produksyon, saray vedio na test a singa onggendan:
Nayarin manbantay kayo met na dakel nin proyekto odino bisitaen so video gallery mi diad Youtube: https://www.youtube.com/@tallmanrobotics

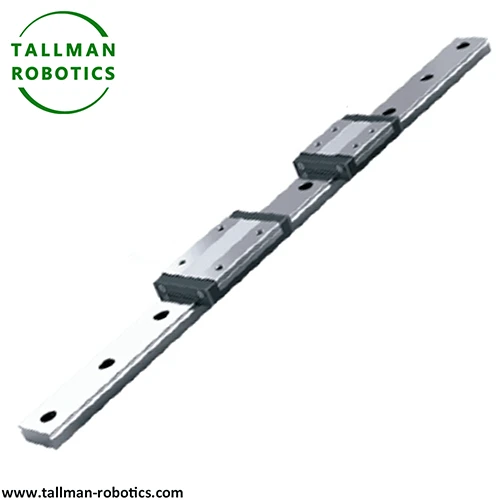

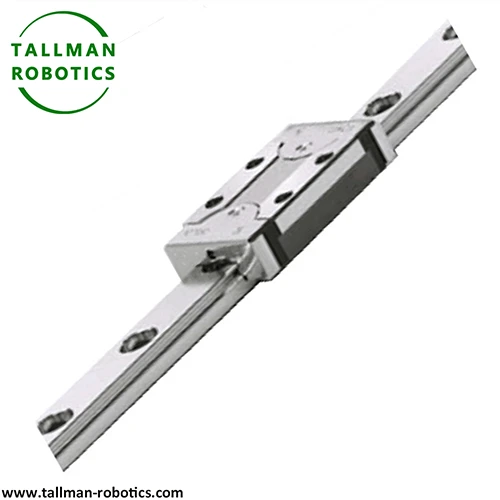

1.Kategorya na Linear Guideways:
|
Serye |
HGH High Assembly |
HGW High Assembly |
EGH Low Assembly |
EGW Low Assembly |
MGN Miniature |
MGW Miniature |
|
Bloke |
H Square Type |
W Flange Type |
H Square Type |
W Flange Type |
N Narraow Guide |
W Wide Guide |
|
Kabaleg |
15,20,25,30,35,45,55,65 |
15,20,25,30,35,45,55,65 |
15,20,25,30,35 |
15,20,25,30,35 |
7,9,12,15 |
7,9,12,15 |
|
Litrato |
|
|
|
|
|
|
|
Komento |
Klase na Bola ya Mabelat |
Klase na Bola ya Mabelat |
Klase na Bola ya Abeba so Profile to |
Klase na Bola ya Abeba so Profile to |
Melag a Klase |
Melag a Klase |

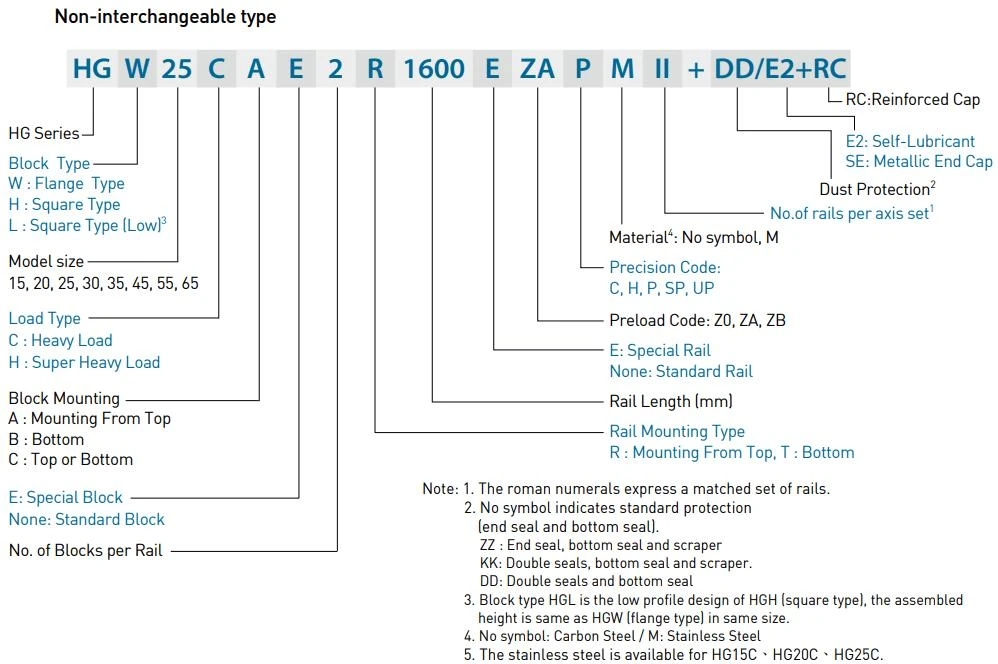

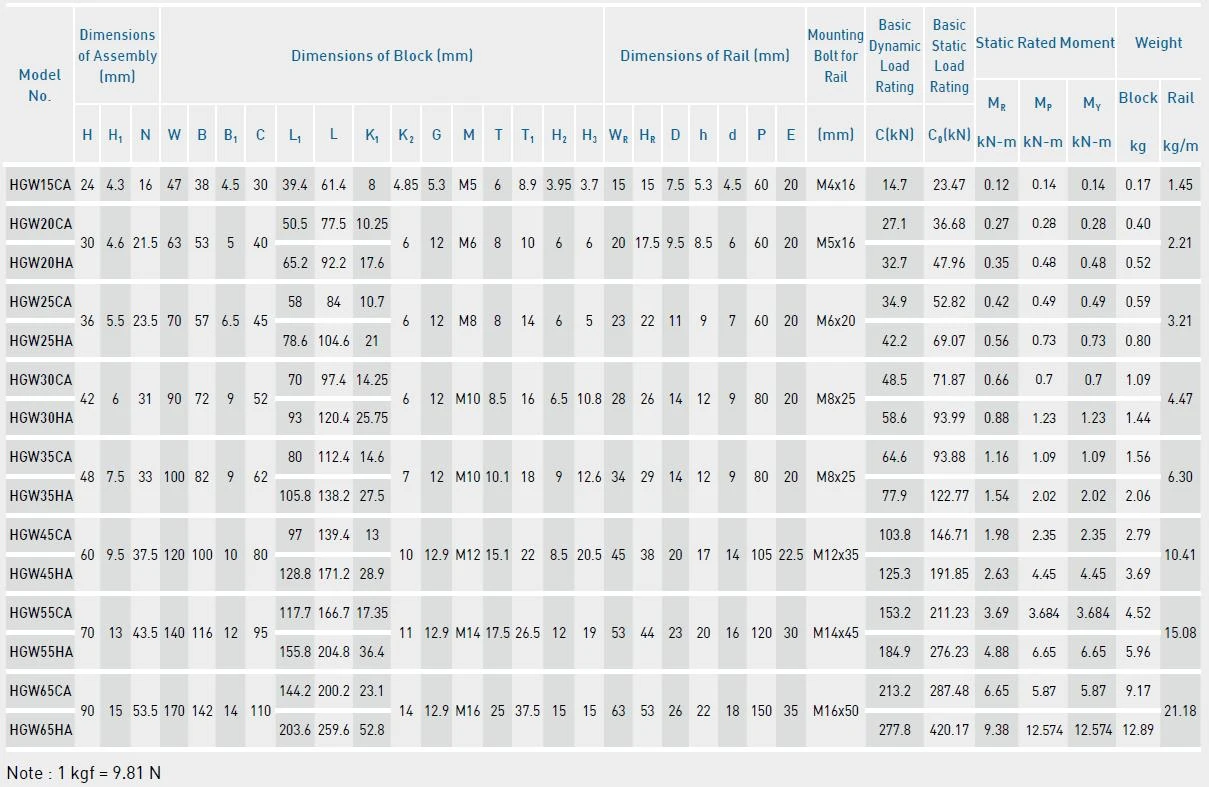

2.Model Section Guide, Drawing tan Data Sheet na Linear Guideways.

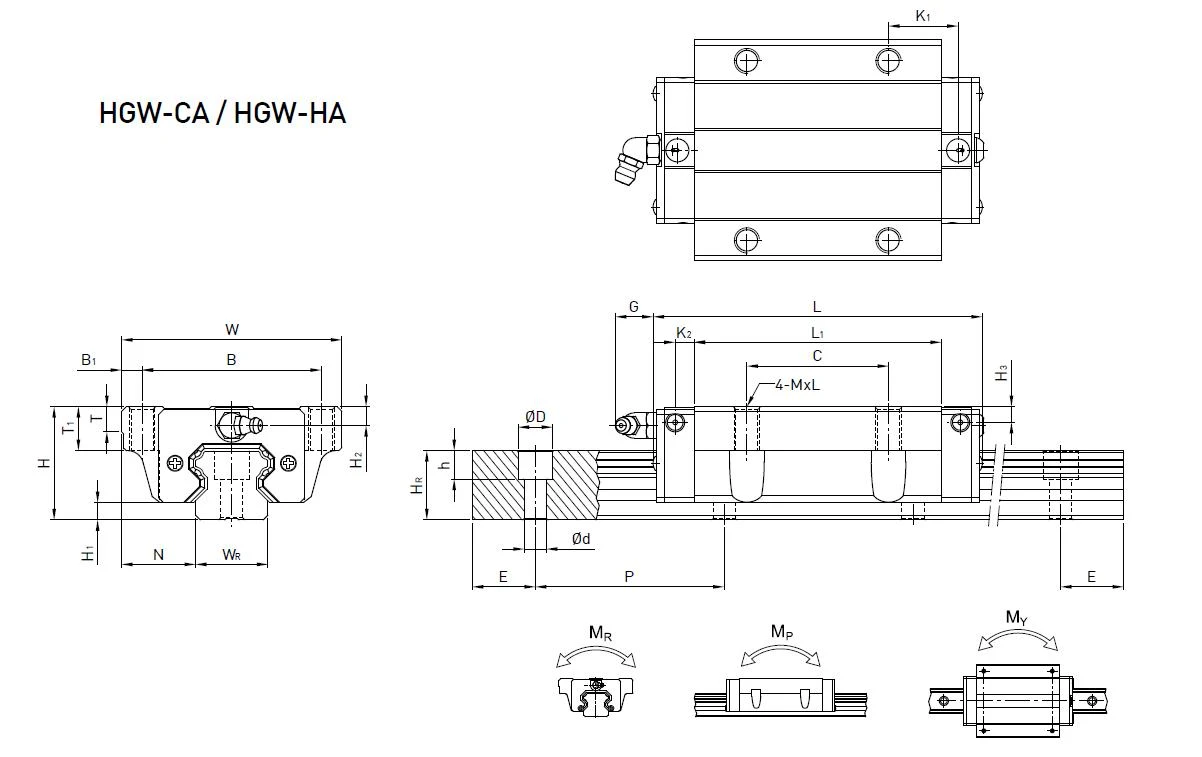

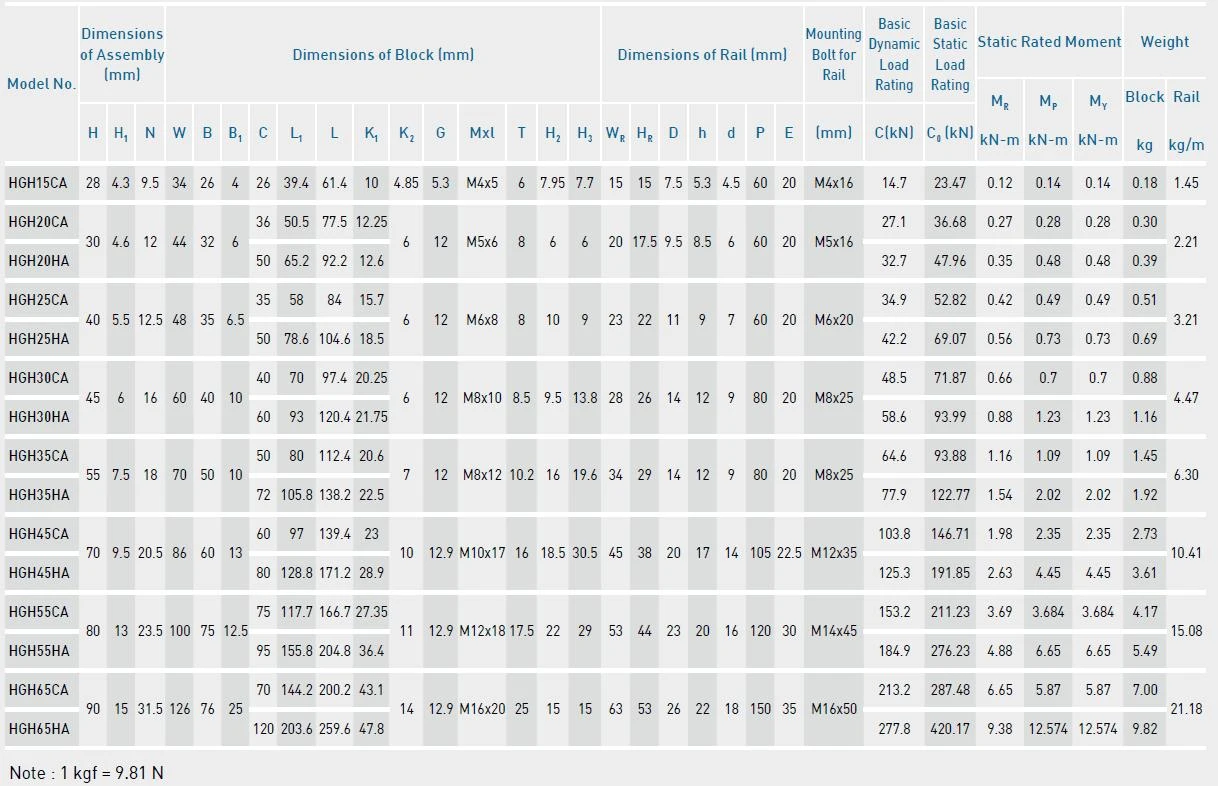

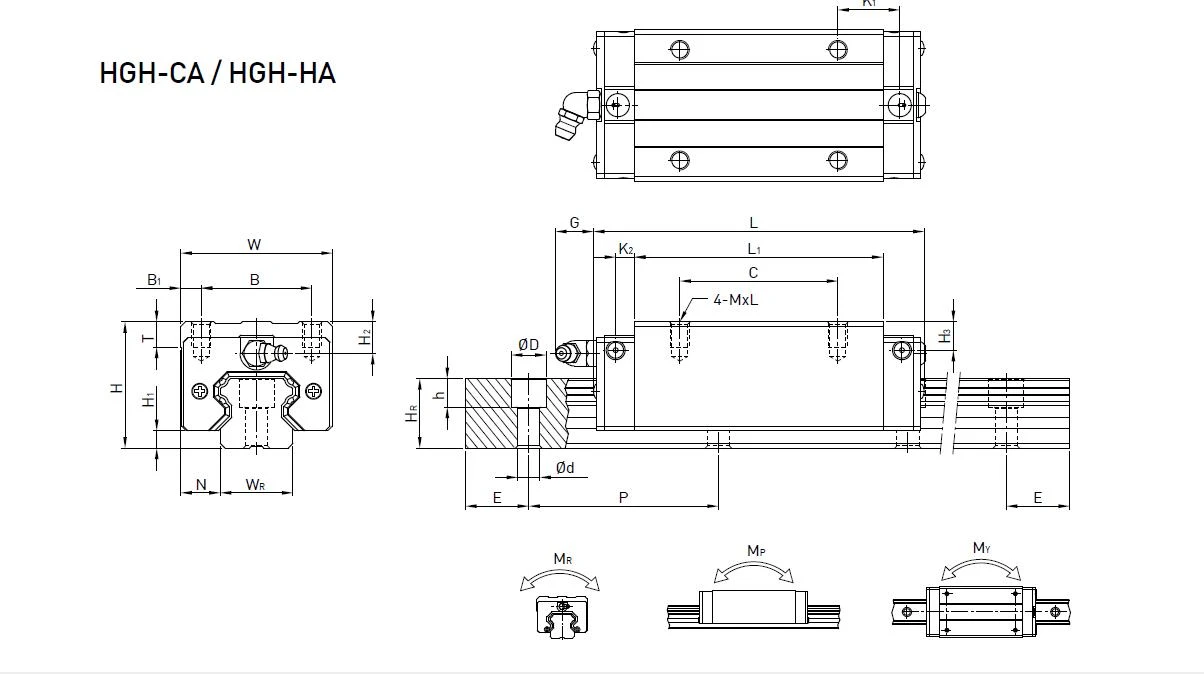

HGH High Assembly tan HGW High Assembly: Heavy Load Ball Type

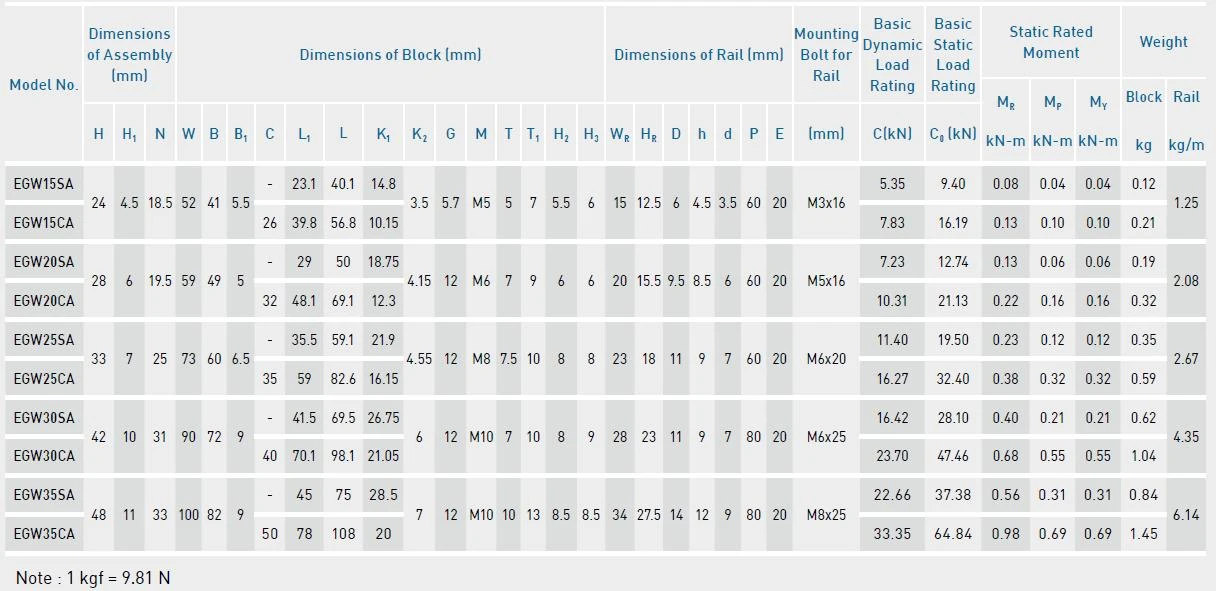

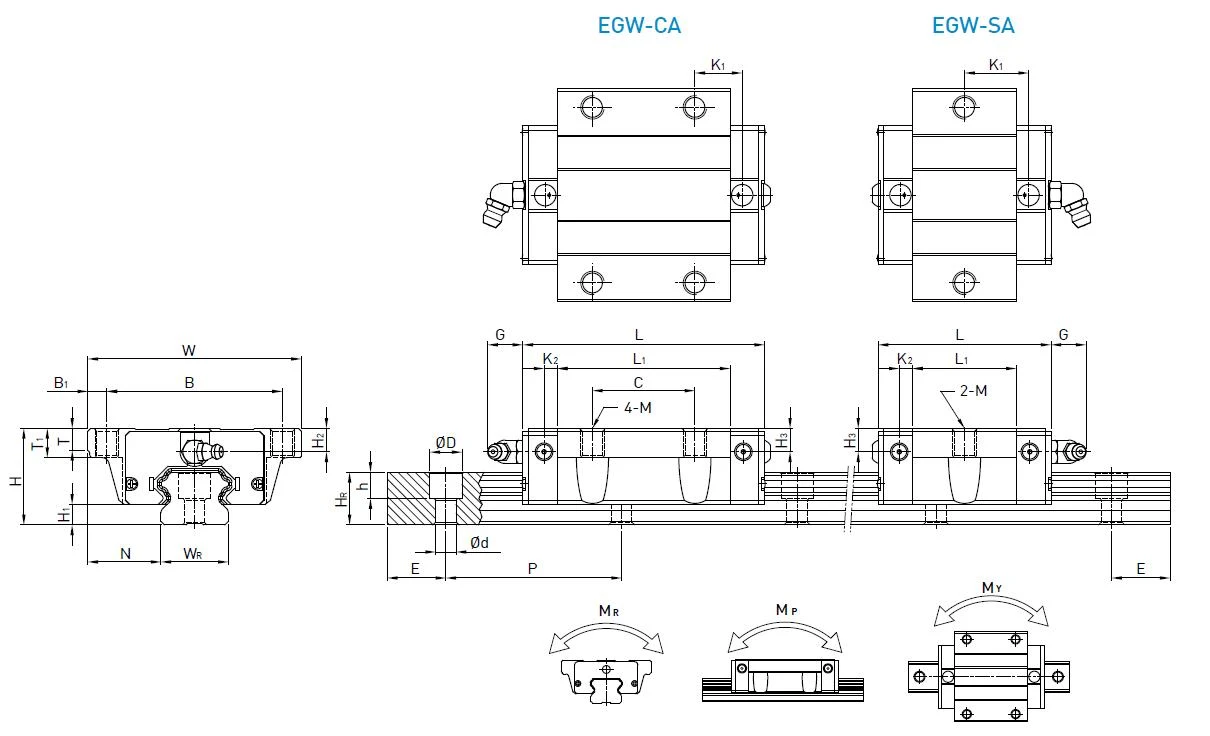

EGH Low Assembly tan EGW Low Assembly: Low Profile Ball Type

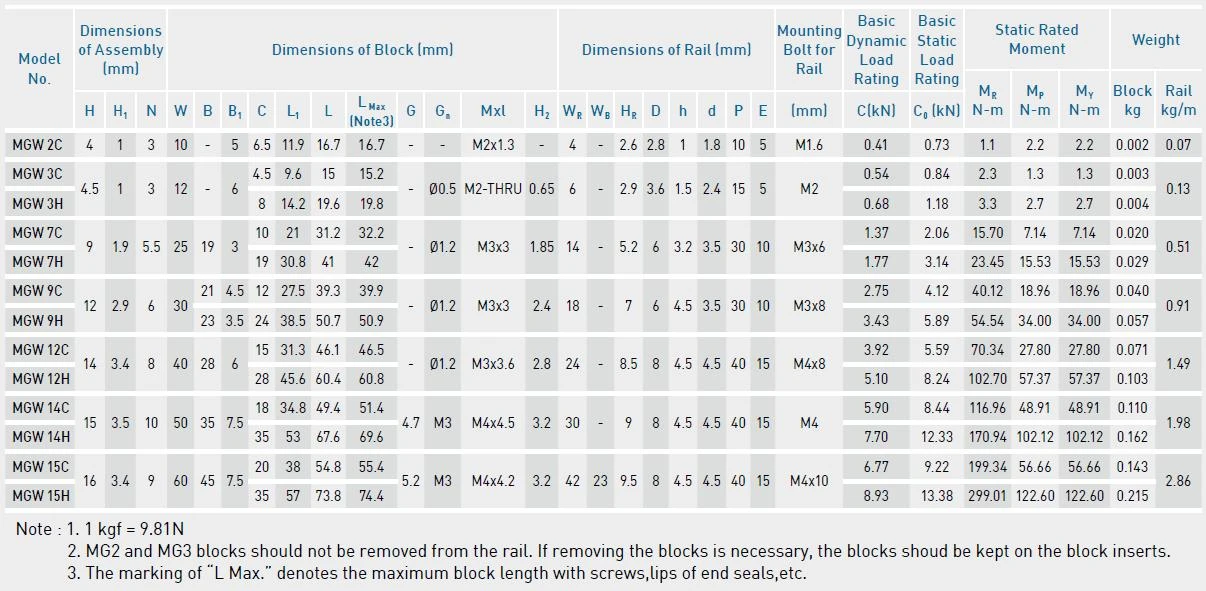

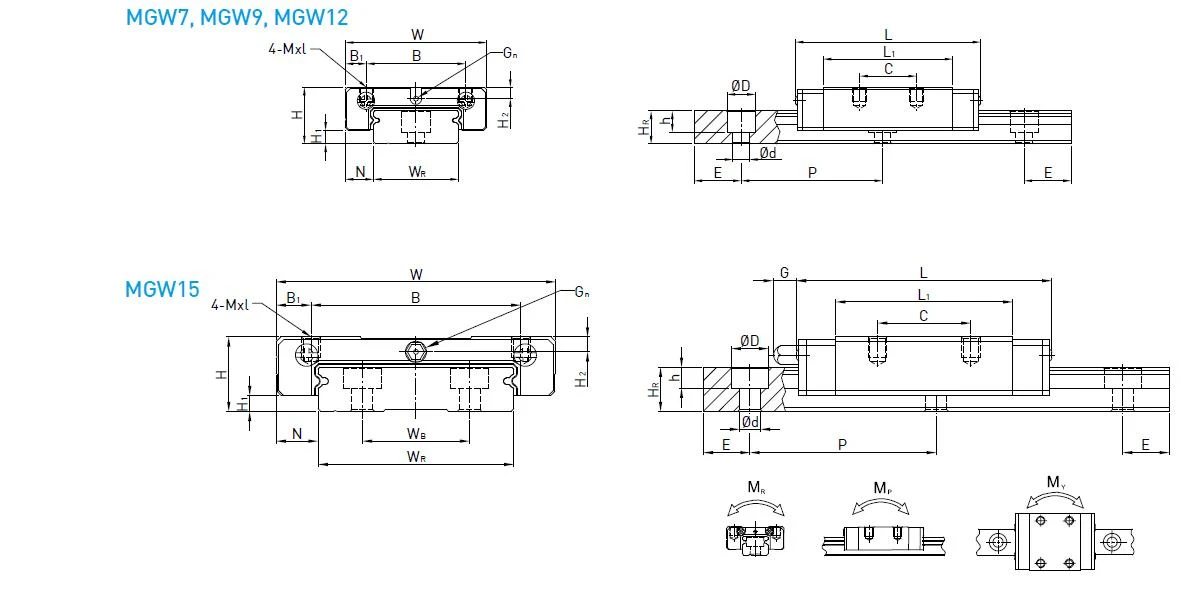

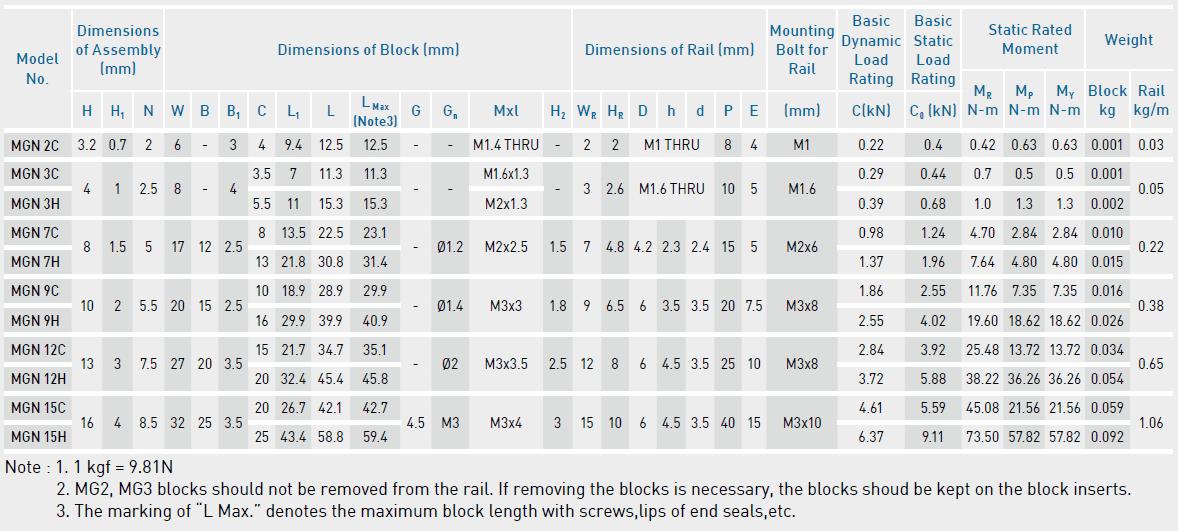

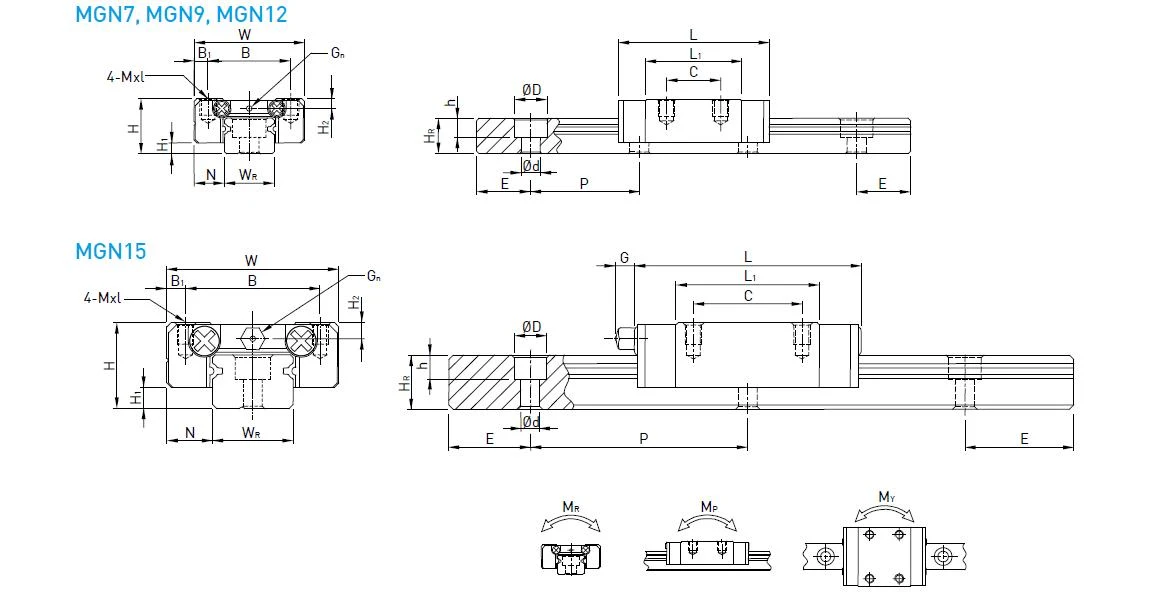

MGN Miniature tan MGW Miniature: Mainget a Klase na Giya tan Malapar a Klase na Giya
Say Linear Guideways, bilang manunan kabiangan na precision motion control, et linmoob ed nanduruman manunan senaryo ed lawak na industriya. Say onggendan et detalyadon panagsukimat base ed saray aktual ya kaso:
Say panaggawa na semiconductor: say pundasyon na nanoscale precision
|
Saray makinan panag-litograpiya tan kagawaan ed panag-inspeksion na wafer |
Sakey ya internasyonal a manggagawa na kagawaan ed semiconductor so mangaagamil na Linear Guideways na HIWIN ed sankabaloan a henerasyon na lithography machine to, ya mangiseguro na malet ya posisyon na saray wafer legan na proseso na lithography panamegley na ultra-high precision (nanometer level positioning error) tan abeban friction characteristics, ya mamaaligwas a maong ed panaggawa na chip. Diad proseso na panagsukimat ed wafer, saray cross roller guide (singa saray produkto nen Schneeberger ya nanlapud Switzerland) et adesinyo ya walay roller cross arrangement pian naabot iray straightness errors ed loob na ± 1 μ m, ya onsusuportad saray detection probe pian na-scan iray sub micron level defects ed tapew na wafer. |
|
Robot ya mangaasikaso na wafer |
Diad wafer transfer equipment, kaukolan ya mibagay so Linear Guideways ed vacuum ya kaliberliber tan napaliisan so kontaminasyon. Singa bilang, sakey a negosyo so manguusar na corrosion-resistant tan low dust linear guides, ya inlaok ed saray servo motor, pian nadampot so eksakton pangiyalis na saray wafer ed baetan na saray etching machine tan saray cleaning machine, ya say positioning error et kulang ed ± 1 μ m, ya makasumpal ed ultra-high precision requirements na extreme ultraviol (EV) lithography machines. |
2.CNC machine tools: say manunan puersa parad atagey a klase na panaggawa
|
Limaran axis linkage machining center |
Sakey a manunan managgaway kagawaan na makina so nampili na silver guide rails ed high-end five axis machining center to, ya walaan na atagey a load-bearing capacity (dynamic load ya anggad 10kN o onsulok ni) tan andukey a bilay, ya onsusuportad tuloytuloy a panag-machining na saray komplikadon kurbadon parte ya walaan na eksakton posisyon ya 500 mm. pamaaligwas ed inkaepektibo na panagmakina na saray parte na aerospace. |
|
Say inyaligwas ed panagsalat ed loob na bansa |
Saray negosyo a singa say Qinghai First Machine tan Jinan Second Machine Tool so angusar na Grade 1 ultra precision rolling linear guide pairs ya ginawa ed bansa ra, ya say inkasusto na rolling tracks ed duaran dapag na guide et nakontrol ed loob na 0.003mm. Matalona iran inyaplika ed saray kagawaan a singa say gantry machining centers, ya onsasalet ed saray imported ya produkto tan naabot so lokalisasyon na saray manunan kabiangan na saray high-end machine tools ya ginawa ed bansa. |
3.Kagawaan ed medisina: garantiya na eksakton panagsukimat tan agtanton makaderal a panagtambal
|
CT tan MRI ya kagawaan |
Diad sakey ya internasyonal a tatak na CT scanner, say Shangyin Guide et manseseguro na inkasusto na posisyon na micrometer level na scanning bed legan na atagey-peles ya panag-ikot diad panamegley na abeban-noise ya desinyo (operating noise<60dB) and high smoothness, providing basic support for the clarity of medical images. The LGR series guide rails use optimized pre pressure adjustment technology to reduce motion interference and control the imaging error of MRI equipment within ± 0.01mm. |
|
Surgical robot |
Say laparoscopic surgical robot et manguusar na micro linear guide (say kabaleg to et kulang o mipara ed 10mm) tan ipapaandar na piezoelectric ceramics pian naabot so micro nano level motion na robotic arm (resolution ya kulang o mipara ed 1 μ m). Diad saray maabig ya operasyon a singa say vascular suturing, say position error et nakontrol ed loob na ± 0.02mm, ya signipikantin mamaaligwas ed kaligenan na minimally invasive surgery. |
4.Logistics warehousing: sakey ya efficiency engine parad intelihentin panag-asikaso
|
AGV tan AMR ya robot |
Say G series G200MS roller type AMR robot et manguusar na linear ya giya bilang mekanismo na panag-alsa, ya walay kapasidad ton mangawit na 200kg. No ikompara ed laser SLAM navigation system, makadampot na ± 10mm ya inkasusto na dalan, ya makaabot ed saray kakaukolanen ed panagmaneho na saray makapal a panagsimpenan na tanel. Diad sistema na panag-sort, say linear guide na cross belt sorting machine et onsusuportad trolley ya ombatik ed kapeles ya 3m/s, ya say sorting error et kulang odino mipara ed ± 50mm tan say tinaon ya operating mileage et masulok ya 100000 kilometro. |
|
Automated three-dimensional warehouse |
Say vertical motion Linear Guideways na stacker crane et manguusar na roller linear guide rail, ya walay dinamikon karga ton masulok ya 500kg. Saya so walaan na encoder pian nadampot so closed-loop control, ya naseguro so inkaepektibo tan inkastabilida na panag-imbantak tan panag-ala na kargamento. Say sakey a panaon na panag-iponpon tan panag-ala et pinatikeyan ed kulang a 15 segundo. |
5.Industrial robots: say manunan kabiangan na flexible ya produksyon
|
Collaborative Robots (Cobots) |
Sakey a sankatalonggaringan a managgaway robot so angitipon na silver guide rails ed saray robot ya mankokoopera, ya walaan na abeban friction characteristics (friction coefficient 0.002-0.003) tan anlemew so desinyo to, ya onsusuportad robotic arm pian nadampot so repeat positioning accuracy ya ± 0.02mm diad saray senaryo na pankokolaboraan na too tan makina. Saraya so malaknab ya uusaren ed eksakton panagtipon na 3C iran produkto. |
|
Cartesian coordinate robot |
Diad saray electronic component mounting equipment, saray linear guide et manseserbi bilang X/Y/Z axis motion units, ya mankikimey a kaiba iray vision system pian nadampot so micrometer level alignment na saray component (mounting accuracy ± 50 μ m), legan ya susuportaan iray mounting head ya onkiwas ed kapeles ya 1m/s odino onsulok ni. Say sakey a kagawaan et makasumpal ed pangikabit na masulok ya 20000 a kabiangan kada oras. |
Balon kagawaan ed enerhiya: sakey a manunan suporta parad epektibon produksyon
|
Linya na panaggawa na baterya ya lithium |
Saray Linear Guideways na coating machine et mangokontrol ed pareparehon galaw na coating head (speed fluctuation Less of o mipara ed ± 0.5%) pian naseguro so pareparehon kapal na electrode (error Less than o mipara ed ± 2 μ m); Say guide rail na winding machine et mipara ed sakey a servo system pian naabot so atagey a - ya inkasusto na saray selula na baterya (error<=± 0.1mm), ya mamaaligwas ed densidad na enerhiya na baterya tan kaligenan. |
|
Panaggawa na photovoltaic module |
Say linear guide rail na string welding robot et manusuporta ed atagey-peles ya galaw ya 2m/s o onsulok ni, tan diad panamegley na teknolohiya na laser welding, sarag ton sumpalen so panag-welding na masulok ya 2000 solar cells kada oras, ya say welding accuracy et ± 0.05mm, ya mamaaligwas a maong ed produksyon na photovoltatic modules. |
Diad iyaaligwas na Industry 4.0, saray Linear Guideways et onaaligwas ed nanometer level precision (singa say ± 0.1 μ m ya pangiposisyon na semiconductor ya kagawaan), intelihente ya integrasyon (ya walay sensor ya akapuesto parad real-time status monitoring), tan green design (abeba so dabok, reclable materials). Base ed saray prediksion na merkado, say sankamundoan ya linear guide rail market et nailaloan ya onsabi ed 2.42 bilyon ya US dollars nen 2023, tan nailaloan ya onlampas ed 2.86 bilyon ya US dollars nen 2027, ya walay compound annual growth rate ya 4.65%. Say manunan posisyon to ed atagey a klase na panaggawa et mantultuloy ya ombiskeg.
